Overview

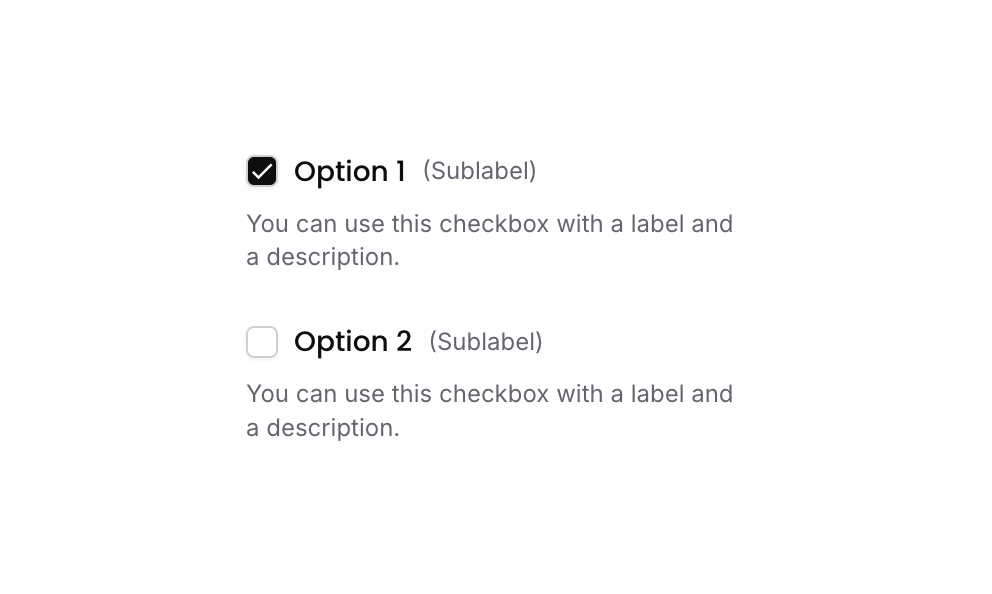

Checkbox 07 is a multi-option checkbox component featuring up to two selectable options, each with a custom icon-based checkbox, a primary label, a sublabel, and a description text. It uses custom states to track selected items and supports toggling selections on and off via click workflows.How to use
States
This component includes conditional states that automatically change its appearance.| State | Trigger | Visual effect |
|---|---|---|
| Checked | User clicks an option group | The checkbox icon changes to a filled check mark with a dark background (rgba(11,8,9,1)) |
| Unchecked | User clicks an already selected option group | The checkbox icon reverts to an empty square with a white background and border |
| Mobile font size | Current page width is less than the built-in mobile breakpoint | Text font size increases to 14px for improved readability on small screens |
These states are handled natively by Bubble and require no additional setup.
They will work automatically once the component is pasted into your editor.
Responsive
This component adapts to mobile screens. Font sizes and layout automatically adjust on screens smaller than Bubble’s built-in mobile breakpoint.Workflows
This component includes pre-built workflows.| Trigger | Action |
|---|---|
| Group - Option 1 Sublabel (Checkbox 07) is clicked (condition: item not in selected list) | Adds the option’s item number to the parent group’s selected_item_ custom state list |
| Group - Option 1 Sublabel (Checkbox 07) is clicked (condition: item already in selected list) | Removes the option’s item number from the parent group’s selected_item_ custom state list |
| Group - Option 2 Sublabel (Checkbox 07) is clicked (condition: item not in selected list) | Adds the option’s item number to the parent group’s selected_item_ custom state list |
| Group - Option 2 Sublabel (Checkbox 07) is clicked (condition: item already in selected list) | Removes the option’s item number from the parent group’s selected_item_ custom state list |
These workflows are included when you use the Copy with Workflows option in the Brikl panel.
Requirements
| License | Starter plan required |
| Plugins | None |
| Custom code | Not required |
Platforms
| Platform | Supported |
|---|---|
| Web | ✅ |
| Mobile | ✅ |
License
This component requires a Starter plan.
