Overview

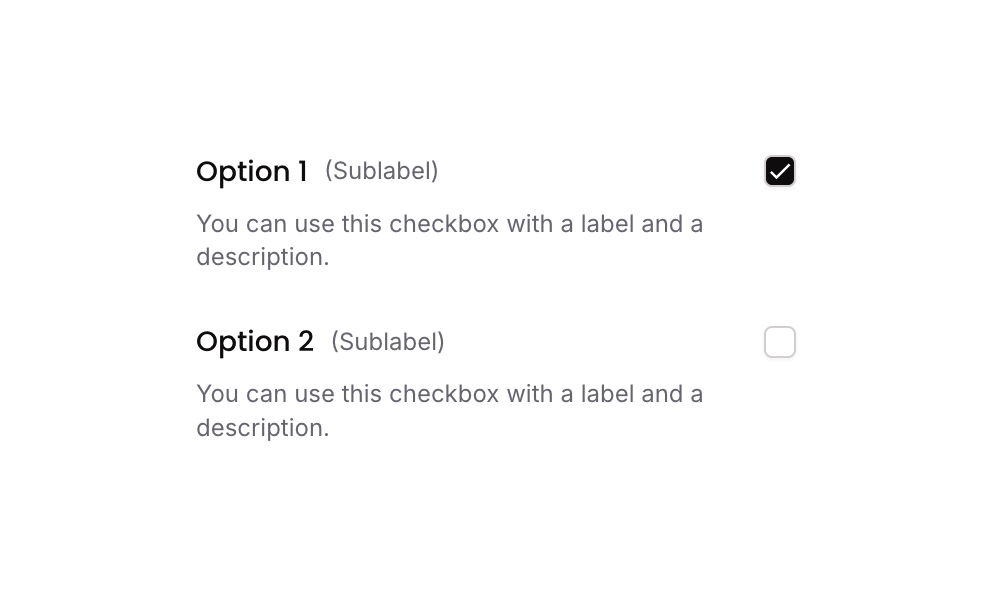

Checkbox 08 is a multi-option checkbox component featuring two selectable options, each with a custom checkbox icon, a primary label, a sublabel, and a description text. It uses custom states to track selected items and toggling logic via workflows, making it suitable for forms, preference selectors, or filter UIs.How to use
States
This component includes conditional states that automatically change its appearance.| State | Trigger | Visual effect |
|---|---|---|
| Selected | User clicks on a checkbox option group | The checkbox icon changes from an empty square to a filled check mark with a dark background, indicating the option is selected |
| Deselected | User clicks on an already selected checkbox option group | The checkbox icon reverts to an empty square with a white background, indicating the option is deselected |
| Mobile Responsive | Current page width is less than the built-in mobile breakpoint | Font size of text elements increases to 14px for better readability on smaller screens |
These states are handled natively by Bubble and require no additional setup.
They will work automatically once the component is pasted into your editor.
Responsive
This component adapts to mobile screens. Font sizes and layout automatically adjust on screens smaller than Bubble’s built-in mobile breakpoint.Workflows
This component includes pre-built workflows.| Trigger | Action |
|---|---|
| Group - Option 01 Sublabel (Checkbox 08) is clicked AND option is NOT currently selected | Adds Option 1’s item value to the selected_item_ custom state list on the parent group |
| Group - Option 01 Sublabel (Checkbox 08) is clicked AND option IS currently selected | Removes Option 1’s item value from the selected_item_ custom state list on the parent group |
| Group - Option 02 Sublabel (Checkbox 08) is clicked AND option is NOT currently selected | Adds Option 2’s item value to the selected_item_ custom state list on the parent group |
| Group - Option 02 Sublabel (Checkbox 08) is clicked AND option IS currently selected | Removes Option 2’s item value from the selected_item_ custom state list on the parent group |
These workflows are included when you use the Copy with Workflows option in the Brikl panel.
Requirements
| License | Starter plan required |
| Plugins | None |
| Custom code | Not required |
Platforms
| Platform | Supported |
|---|---|
| Web | ✅ |
| Mobile | ✅ |
License
This component requires a Starter plan.
